Four product lines covering clamping, positioning, exchange and automation — complete machining solutions
The Bowei product system revolves around four core capabilities — clamping, positioning, exchange, automation — flexibly combinable per your precision, cycle-time and automation needs.
Hydraulic / pneumatic / automatic / manual fixtures. Experts in all types of metal-cutting fixtures, 2-3s rapid clamping.
Hydraulic Fixtures →Ball-Lock (<±0.013mm) / Zero-Point (≤0.003mm) for instant positioning and high rigidity.
Zero-Point →Exchange tables for rapid workpiece/fixture swaps, boosting machine utilization and cutting auxiliary time.
Exchange Tables →Cobots / non-standard automation with turnkey engineering and customized upgrades.
Automation →Click a category tab to quickly filter products
For OKK MB-46VA VMC, ensures high-precision machining of rotating/static discs.
View Cases →
For SW BA322 twin-spindle machine, multi-face efficient precision machining.
View Cases →
For Doosan VMC, Mazak/Haicut HMC, covers all cylinder block operations.
View Cases →

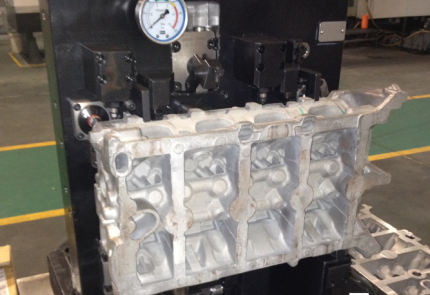

For Haicut HMC, dedicated high-precision cylinder head solution.
View Cases →
Designed for thin-wall deformation-prone oil pans, ensures accuracy and consistency.
View Cases →
For complex housing structures, multi-face single setup boosts efficiency.
View Cases →
Air-driven, fast response, suited for mid-to-low load batch machining.
View Cases →Dedicated for construction machinery track links, high rigidity, cutting-force resistant.
View Cases →
Automated clamping matched to line cycle time, reducing labor cost.
View Cases →
Dedicated for large axle parts, long stroke, high-rigidity clamping.
View Cases →
Repeatability < ±0.013mm, instant positioning & clamping, high rigidity.
Modular ball-lock assembly enabling fast fixture changeover on any machine.
Repeatability ≤ 0.003mm, ultra-high-precision rapid changeover.
Precision-machined receiver for zero-point clamping, ensures consistent location.
Rapid workpiece/fixture exchange, higher utilization, less auxiliary time.
Heavy-duty pallet changer for multi-machine lines, maximizes spindle uptime.
Compact, flexible, safe — takes over loading/unloading, boosts output & quality.
Turnkey engineering with customized upgrades — economical and efficient.
Custom-designed automation for specific processes — turnkey delivery guaranteed.
Across efficiency, precision, intelligence, safety and stability — see how hydraulic fixtures lead on all dimensions
| Dimension | Manual Fixture | Hydraulic Fixture |
|---|---|---|
| Efficiency | Time & effort consuming | Fast & easy, clamp/release in 2-3s |
| Precision | Clamping deviation 15%-25% | Auto clamping deviation only 1%-1.5% |
| Intelligence | Not available | Automatable, status monitoring |
| Safety | Prone to loosening | Continuous follow-up clamping |
| Stability | Support deviation 25%-35% | Hydraulic support deviation only 0.5%-0.8% |
Choose the right system based on product precision and machining needs
Ball-Lock Positioning System
| Repeatability | < ±0.013mm |
|---|---|
| Configuration | Min. 2 ball-lock shafts + 2 receivers + 2 locating bushings |
| Key Feature | Instant positioning & clamping, high rigidity |
| Advantage | Significantly reduces changeover time |
| Application | Medium-precision rapid changeover |
Zero-Point Positioning System
| Repeatability | ≤ 0.003mm |
|---|---|
| Configuration | Zero-point positioner + interface pallet |
| Key Feature | Ultra-high-precision rapid changeover |
| Advantage | Rapid fixture change, higher efficiency |
| Application | High-precision, high-cycle precision machining |
Common questions about Bowei products, customization and cooperation
20-year experienced team offers 1-on-1 solution design
